DESCRIPTION

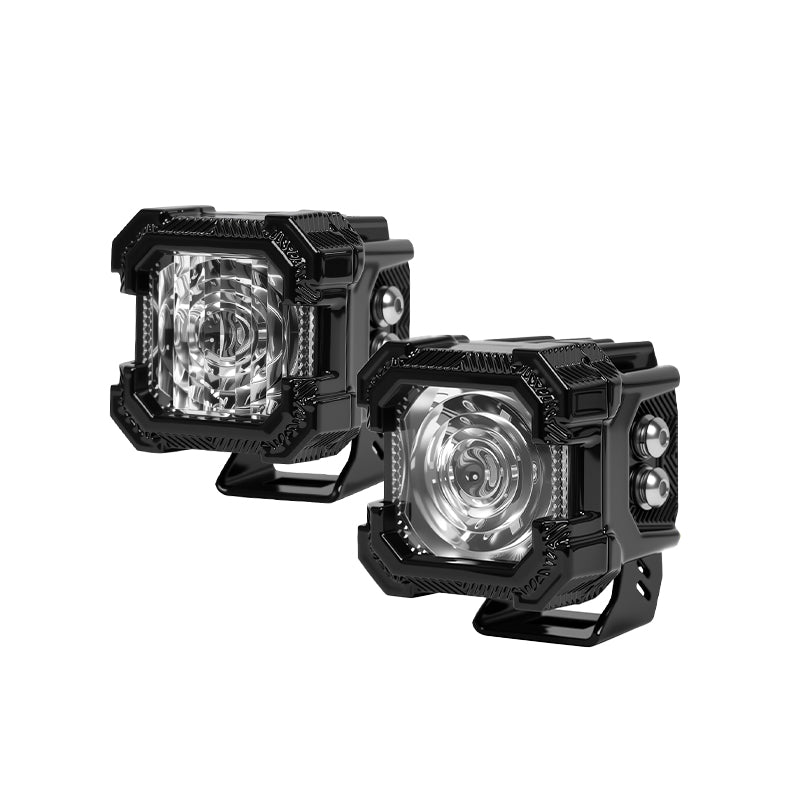

Introducing the SUPAREE Recon 1 — a compact yet versatile off-road LED lighting solution designed for superior performance and durability. Delivering 1056 lumens in Spot Beam and 1736 lumens in Wide Beam, the Recon 1 provides powerful illumination in a small footprint.

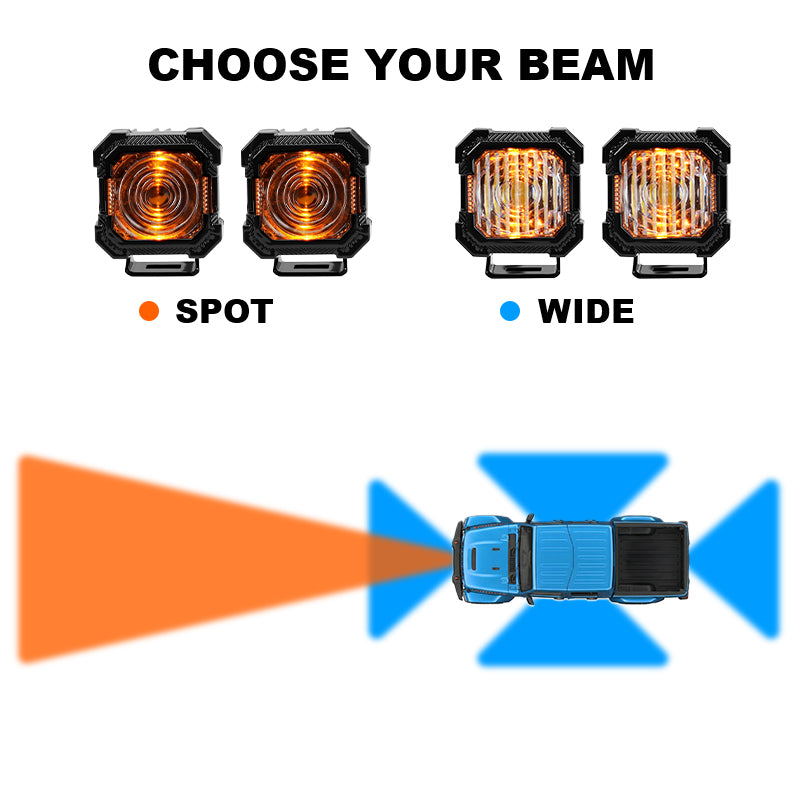

The Spot Beam produces 1447 lux at 10m (32ft) and maintains 1 lux at 357 yd (1072 ft), while the Wide Beam outputs 207 lux at 10m (32ft) and reaches 1 lux at 127 yd (380 ft). With an integrated amber DRL, it ensures enhanced daytime visibility and safety.
Engineered with subtle housing and bezel engravings that increase surface area by 5%, the Recon 1 offers improved heat dissipation and a 50,000-hour lifespan. Built tough with IP68/IP69K waterproofing, it withstands high-pressure washes and immersion in up to 36 inches of water.

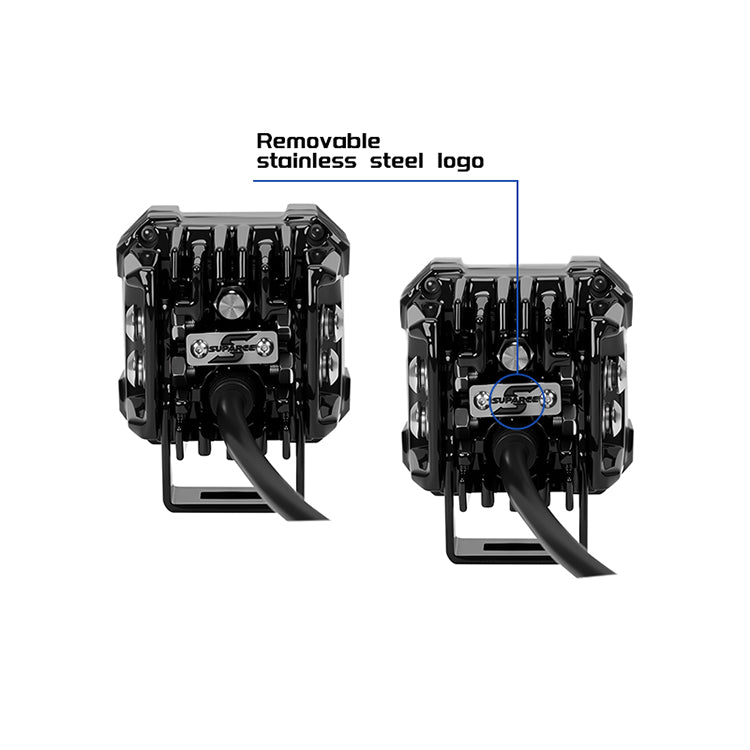

Each unit includes a detachable stainless steel logo, hard-coated polycarbonate lenses for clarity and impact resistance, and has been tested to perform reliably in extreme temperatures from -40°F to 149°F. Complete with a black bezel, adjustable stainless steel bracket, and a 9.8 ft wiring harness with multifunction switch, the SUPAREE Recon 1 is backed by a 5-year limited warranty and certified to ROHS, CE, FCC, and EMC standards.
FEATURES & BENEFITS
Compact Versatility: Small design with powerful output for multiple applications.
High Output: 1056 lm (Spot) / 1736 lm (Wide) for clear visibility.
Beam Performance: Spot – 1447 lux @ 10m (32 ft), reaching 357 yd (1072 ft). Wide – 207 lux @ 10m (32 ft), reaching 127 yd (380 ft).

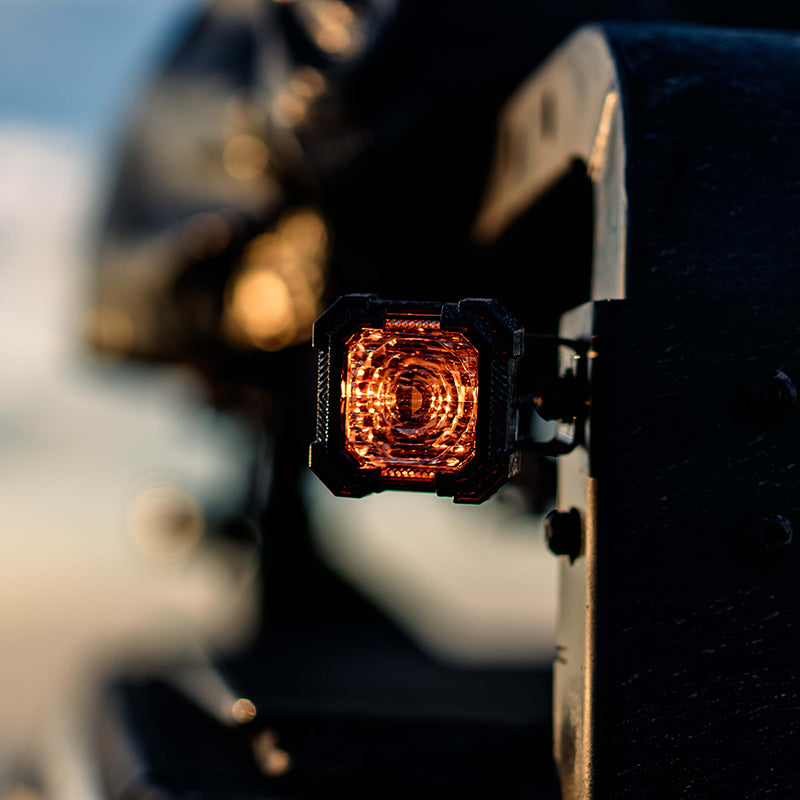

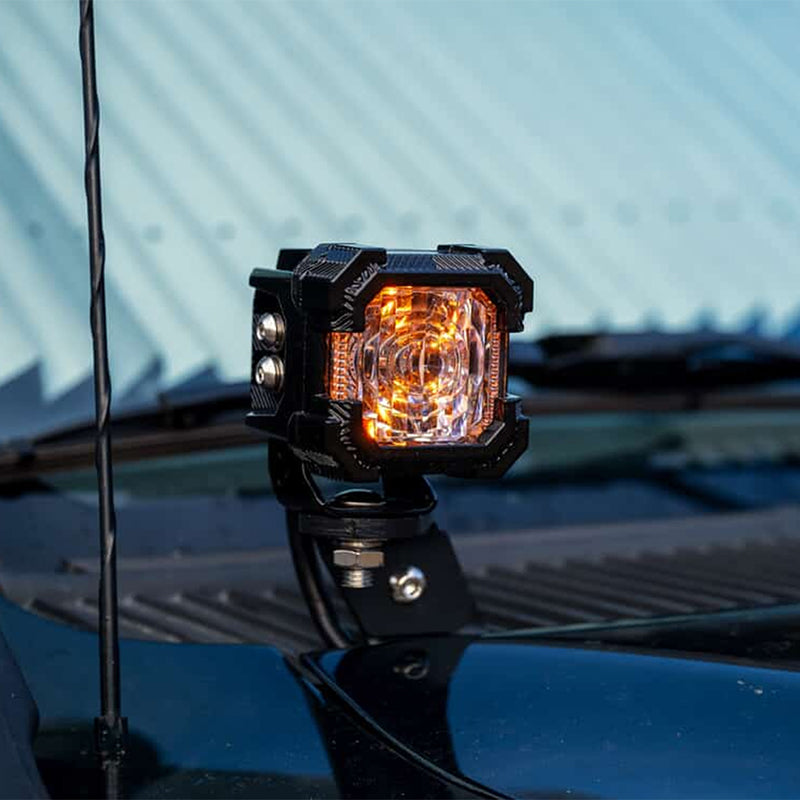

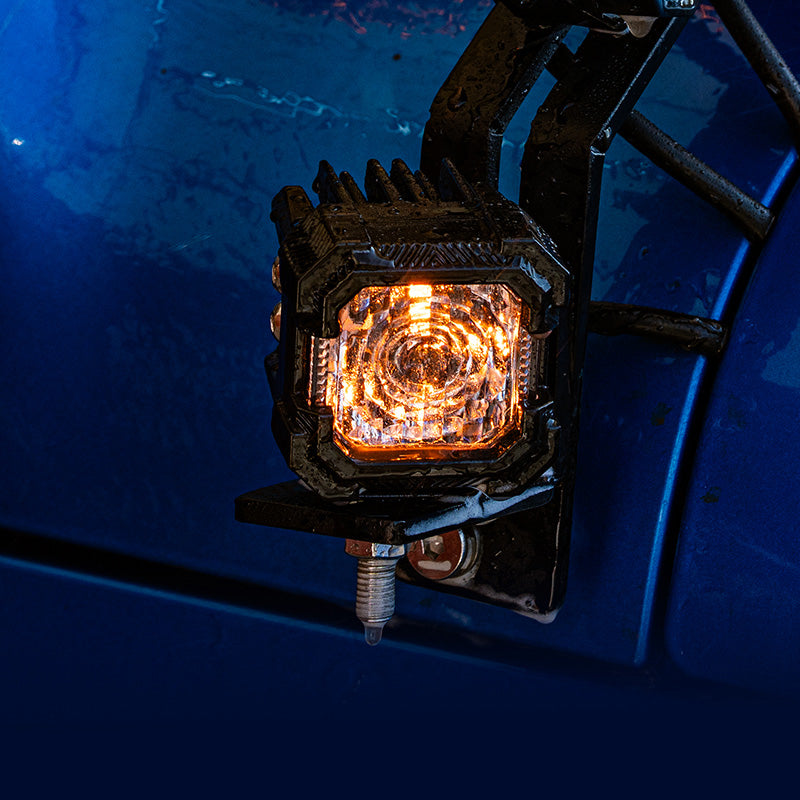

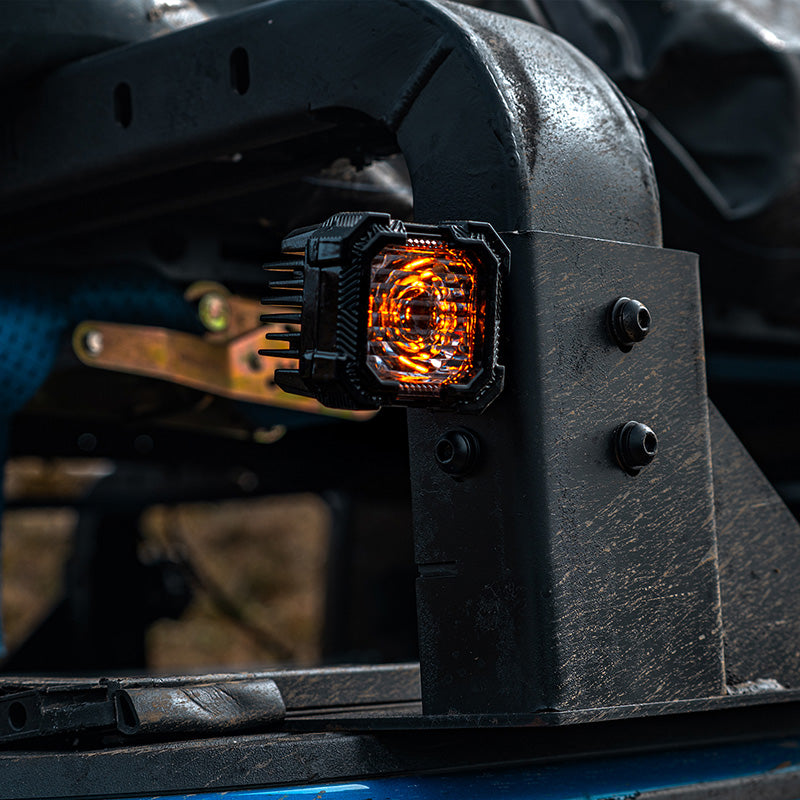

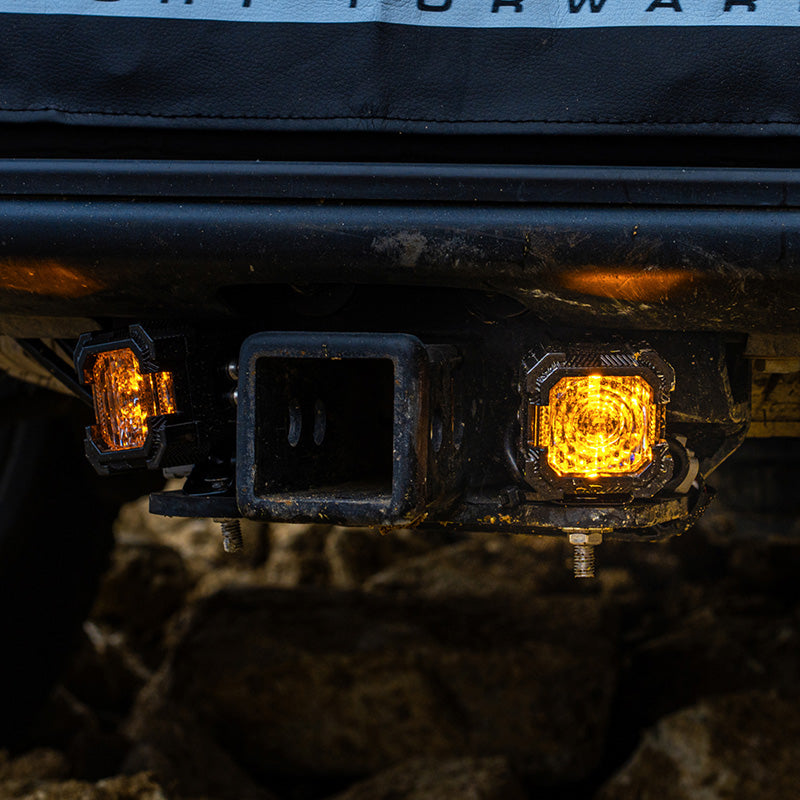

Amber DRL: Daytime running light improves safety and visibility.
Enhanced Cooling: Engraved housing & bezel increase airflow by 5% for better heat dissipation.

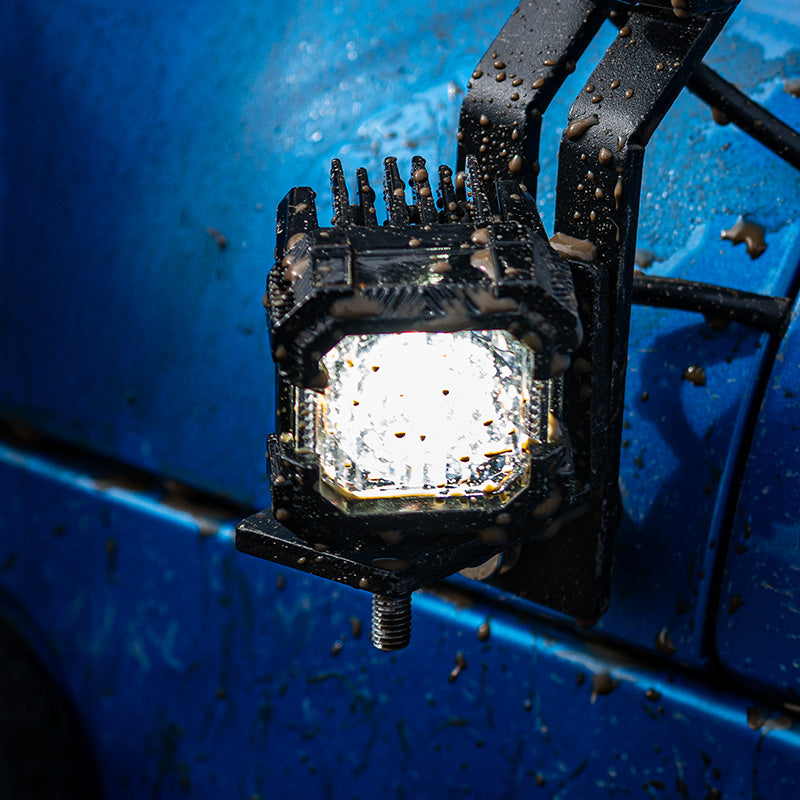

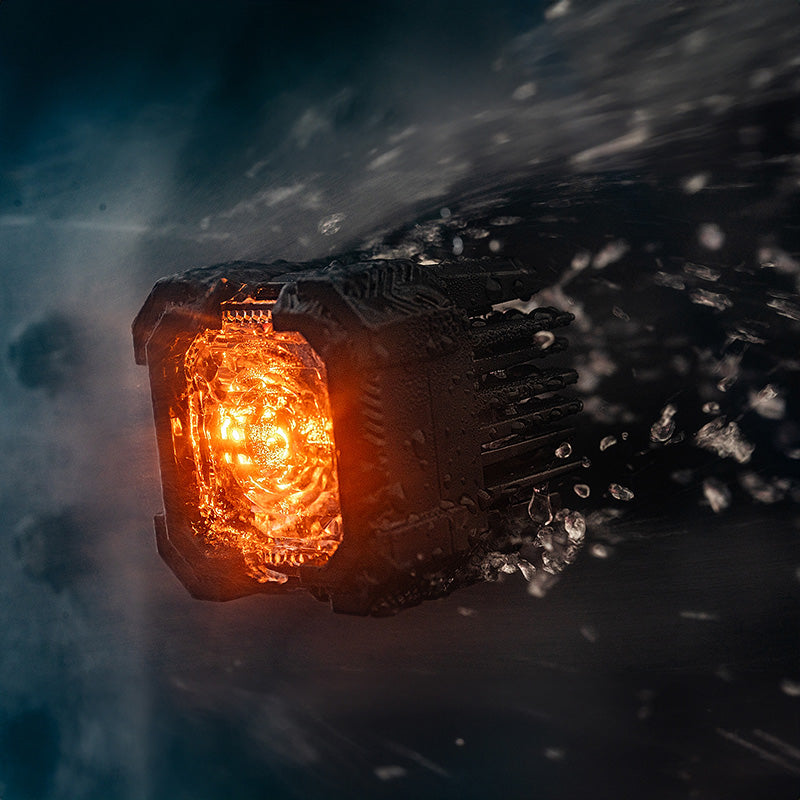

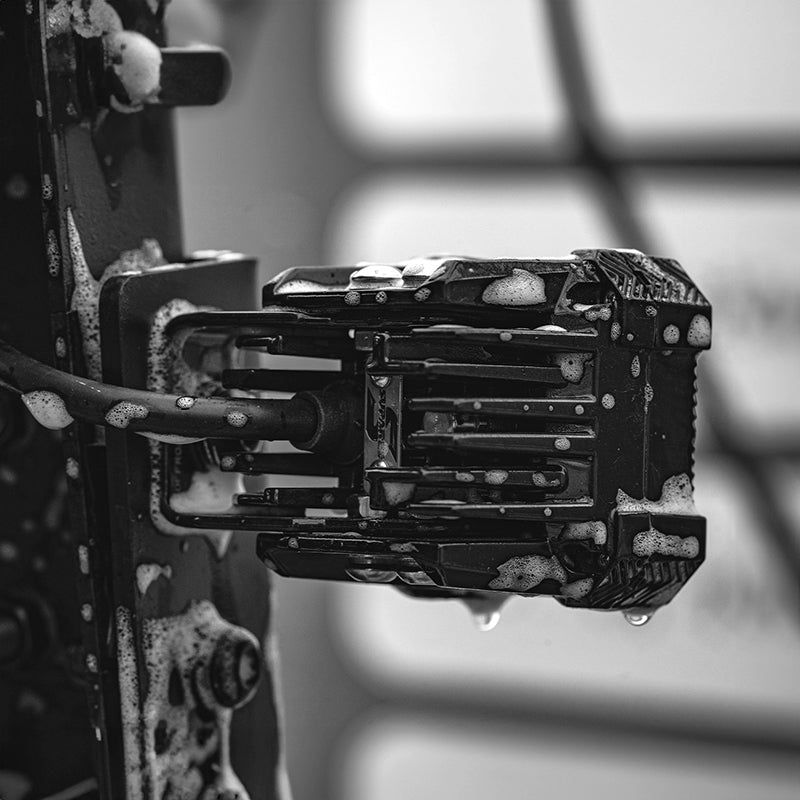

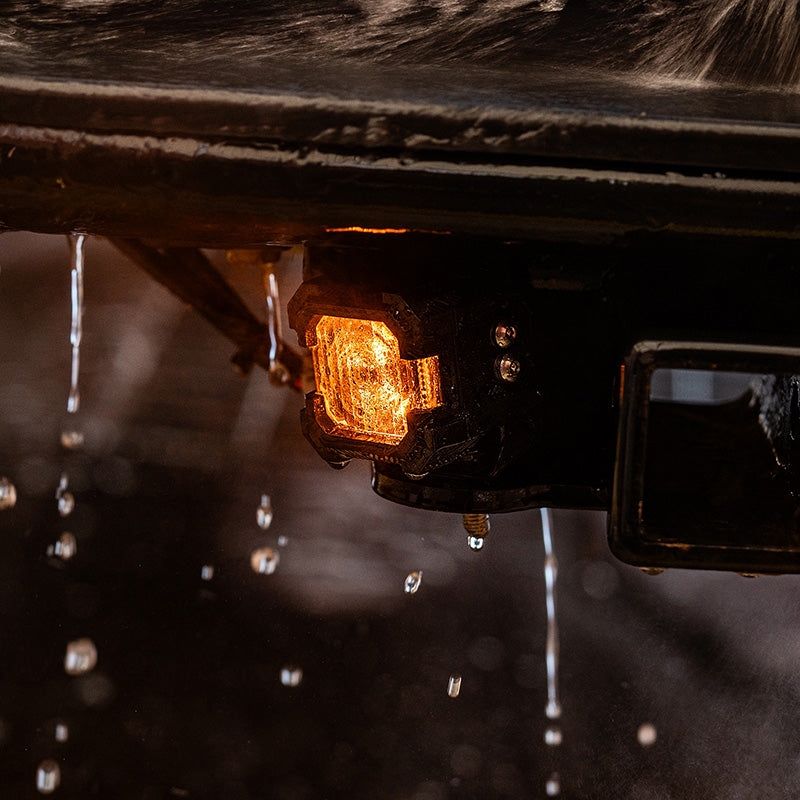

Extreme Durability: IP68/IP69K waterproof, pressure-wash safe, and immersion-tested.
Rugged Construction: Hard-coated polycarbonate lens ensures clarity and strength.
Reliable in All Conditions: Tested for operation from -40°F to 149°F.
Customizable Look: Includes black bezel and detachable stainless steel logo.
Complete Kit: Adjustable stainless steel bracket, hardware, and 9.8 ft harness included.
Certified Quality: ROHS, CE, FCC, EMC compliant; backed by 5-year limited warranty.
COMPATIBILITY
Universal : With Included Standard Bottom Mount Brackets
TECHNICAL SPECIFICATIONS
| Lens & Housing | |
|---|---|
| Lens Color | Clear |
| Lens Material | Hard-coated Polycarbonate |
| Housing Color | Gloss Black |
| Housing Material | Powder-coated Die-Cast Aluminum |
| Bezel Material | Powder-coated Die-Cast Aluminum |
| Lighting | |
| Modes | Spot Beam or Wide Beam + Amber Backlight |
| Technology | LED |
| Projection Type | Forward Projection |
| Wattage | Spot: 20W (1.53 A(13V)/ Wide: 20W(1.53 A(13V) |
| Voltage | 12V / 24V |
| Beam Angle | Spot: 136° / Wide: 143° |
| Lighting Distance | Spot: 1 lux @ 357 yd / Wide: 1 lux @ 126 yd |

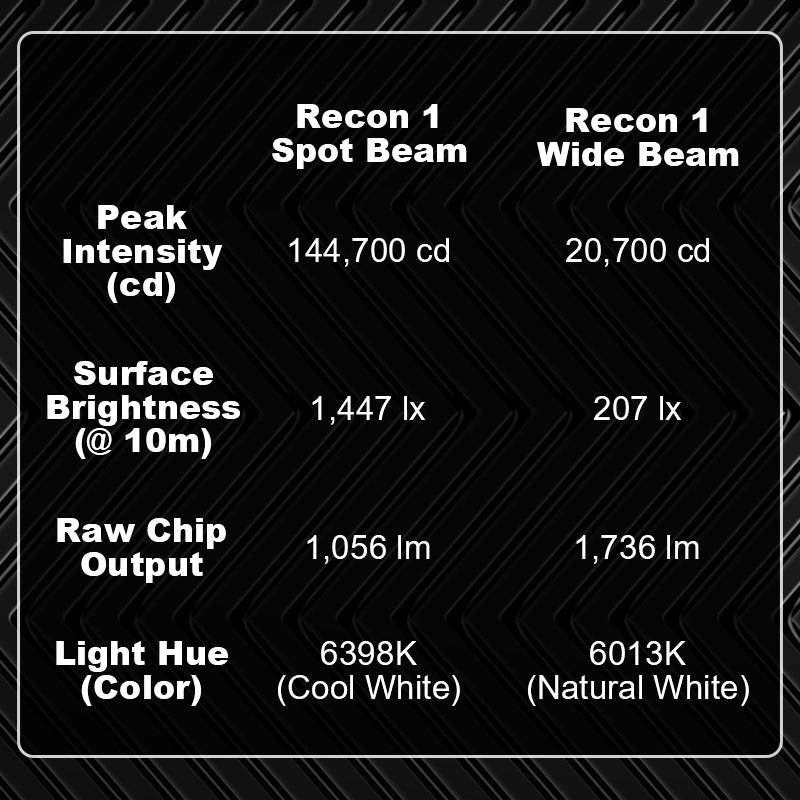

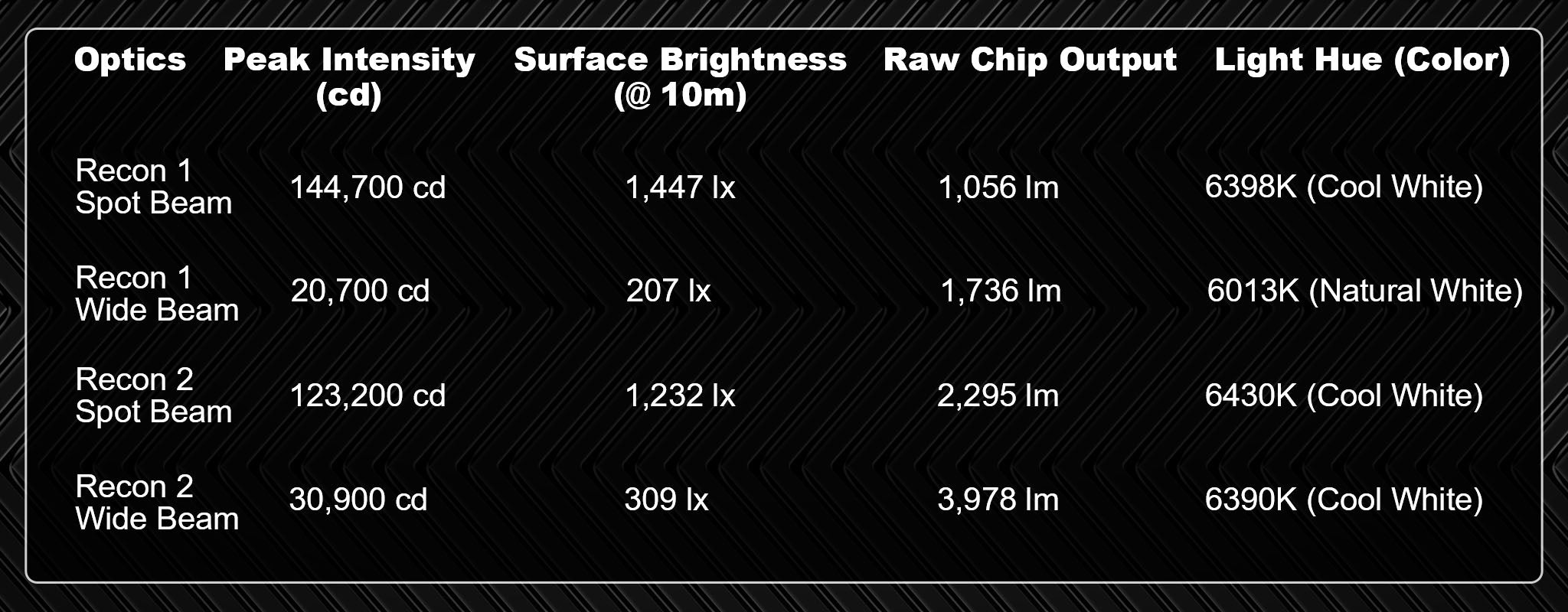

| 10m Lux | Spot: 1447 lx / Wide: 207 lx |
| Center Intensity | Spot: 144,700 cd / Wide: 20,700 cd |
| Lumen Output | Spot: 1056 lm / Wide: 1736 lm |
| Color Temperature | Spot: 6398K / Wide: 6013K |
| Light Sources | |
| Main LEDs | Spot: Luminus SFT-25R Wide: Luminus SFT-160FA-W-3570 |
| Main LED Quantity | 1 LED |
| Backlight LEDs | 2835 Chips, Amber, 2 LEDs, 1660K |
| Electrical | |
| Rated Voltage | 12V / 24V |
| Lifespan | 50,000 hours |
| Application | Universal |
| Mounting & Hardware | |
| Mounting Hardware Included | Yes |
| Hardware Material | Stainless Steel |
| Brackets | 2 × Gloss Black brackets, includes 8 × M5 hex screws, 2 × M8 carriage bolts, and wrench |
| Wiring Harness | |
| Included | Yes |
| Connector | DT Plug with mating connector |
| Length | 9.8 ft (3 m) |
| Material | Silicone Wire |
| Specs | Dual-output harness, 18 AWG main wires, 12V/40A relay, 10A fuse, 16 AWG branch wires, rocker switch with insulated leads |

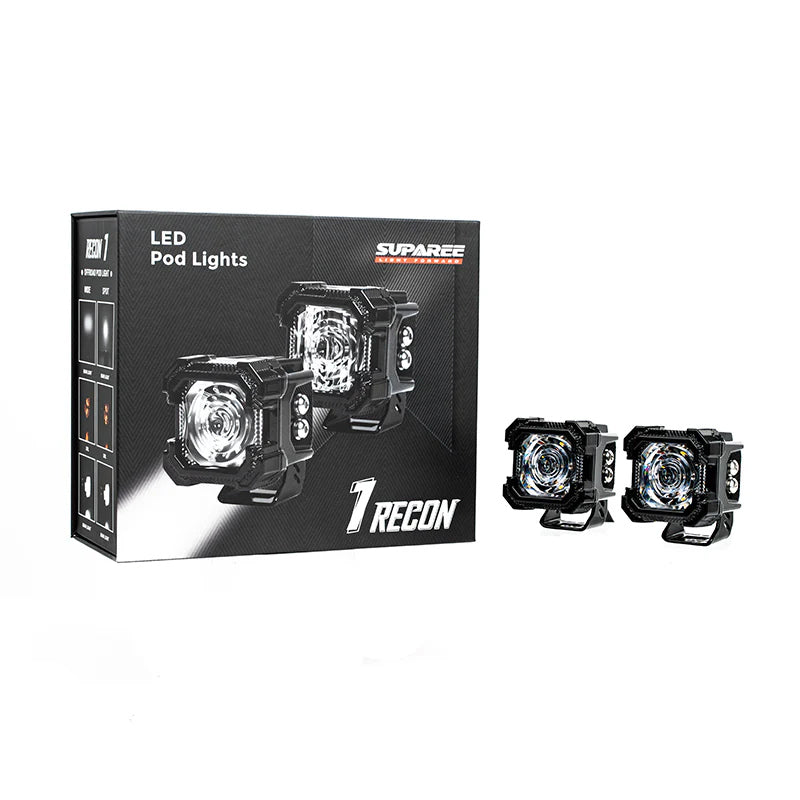

| Package Contents | |
| • 2 × Lamp Bodies (with detachable stainless steel badge) • 2 × Black Covers • 2 × Stainless Steel Brackets + full hardware (M5 screws, M8 carriage bolts, wrench) • 1 × Dual-output Wiring Harness (3 m) • 1 × Inner Packaging with foam • 1 × Outer Packaging Box • 1 × User Manual |
|
