Installation Steps:
- Cut along the dotted lines of the supplied placement template.

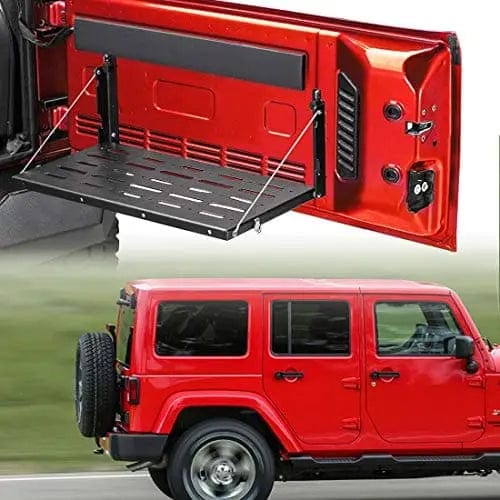

- Open the tailgate and position the template with the right edge against the plastic cover on the right and the upper edge against the upper plastic cover.
- Tape the template in place and use a center punch to mark the four mounting hole locations. Remove template.
- Drill a pilot at each location with a 1/8" drill bit. Final drill each hole with a 3/8" drill bit. The top right hole on the tailgate uses the long #727 nutsert.
- Thread the nursery onto the tool, insert the assembly into the drilled hole. The fit should be tight and may need a light tap from a mallet to fully seat.
- Ensure the nutsert is fully seated as the Allen cap screw is tightened to install the nutsert. The initial resistance will be high until the nutsert begins to collapse. Resistance will again increase when the nutsert is fully collapsed and seated.
- Repeat for the remaining three nutserts.
- Push the rubber bumpers into the aluminum spacers.
- Close at latch the table to check function.
- Installation is complete.
NOTE:SUPAREE suggested that watching installation videos in Youtube will be helpful (The instructions are included,but nutsert tool not included)
